Editor Control Scheme

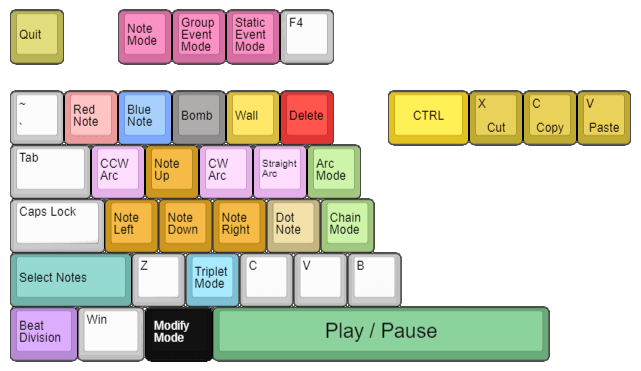

Note Mode (F1) Controls
| Function | Mouse Hover | CTRL | SHIFT | ALT | Key |
|---|---|---|---|---|---|
| Switch to Note Mode | F1 | ||||
| Switch to Group Event Mode | F2 | ||||
| Switch to Static Event Mode | F3 | ||||
| Play / Pause | Spacebar | ||||
| Place Note on Grid | Left Click | ||||
| Move Playhead ahead in time | Mouse Scroll Up | ||||
| Move Playhead backward in time | Mouse Scroll Down | ||||
| Move Playhead to Block | Mouse Hover | Ctrl | Left Click | ||
| Left Hand (Red) Note | 1 | ||||
| Right Hand (Blue) Note | 2 | ||||
| Bomb | 3 | ||||
| Wall (Obstacle) | 4 > Left Click > Scroll > Left Click | ||||
| Delete | 5 > Left Click on Block | ||||
| Note Direction | W,A,S,D, W+A, A+S, S+D, D+W | ||||
| Dot note (Tap again for diagonal) | F | ||||
| Arc Mode | T | ||||
| Counter Clockwise Arc | Q | ||||
| Clockwise Arc | E | ||||
| Straight Arc | R | ||||
| Chain Mode | G | ||||
| Quit | Esc | ||||
| Toggle Triplets Beat Subdivision | X | ||||
| Beat Division Increase | Ctrl | Scroll Up | |||
| Beat Division Decrease | Ctrl | Scroll Down | |||
| Select / Deselect Single Block | Shift | Left Click | |||
| Selection Marquee | Shift | Left Click & Drag | |||
| Select Range of Blocks | Ctrl | Alt | Left Click first then last object | ||
| Move Selected Blocks in Time | Shift | Alt | Arrow Keys | ||
| Move Selected Blocks around Grid | Alt | Arrow Keys | |||
| Delete Selected Blocks | Delete | ||||
| Note Colour Flip | Mouse Hover | Middle Mouse Button | |||
| Modify Block | Mouse Hover | Alt | Any Note Direction / Colour | ||
| Move Note on Grid | Alt | Left Click Hold & Drag | |||
| Delete Block (Alternative) | Mouse Hover | Ctrl | Middle Mouse Button | ||
| Cut | Ctrl | X | |||
| Copy | Ctrl | C | |||
| Paste | Ctrl | V | |||
| Clear Selection | Ctrl | A | |||
| Quick Save | Ctrl | S |
Camera Controls
Hold the Camera Pan key to enable all other camera keys.
| Function | Key |
|---|---|
| Camera Pan | Right Mouse Button (Hold) |
| Move Forward | W |
| Move Backward | S |
| Move Sideways Left | A |
| Move Sideways Right | D |
| Move Up | Space |
| Move Down | Ctrl |
| Speed Up Movement (Hold) | Shift |
Group Mode (F2) Controls
Colour, Speed and Brightness.
| Function | Mouse Hover | CTRL | SHIFT | ALT | Key |
|---|---|---|---|---|---|
| 1st Colour Event | 1 | ||||
| 2nd Colour Event | 2 | ||||
| White Colour Event | 3 | ||||
| Extension Block | 4 | ||||
| Delete | 5 > Left Click on Event | ||||
| Static Event Brightness 0 | Q | ||||
| Static Event Brightness 50 | W | ||||
| Static Event Brightness 100 | E | ||||
| Fade Event Brightness 0 | A | ||||
| Fade Event Brightness 50 | S | ||||
| Fade Event Brightness 100 | D | ||||
| Strobe On (Toggle) | F (Keep Clicking F To change frequency) | ||||
| Strobe Off | R | ||||
| Set Brightness 0-90 | Numpad 0-9 | ||||
| Set Brightness 100 | Numpad / | ||||
| Set Brightness 120 | Numpad * | ||||
| Set Brightness 150 | Numpad - |
Common Functions
| Function | Mouse Hover | CTRL | SHIFT | ALT | Key |
|---|---|---|---|---|---|
| Change Event Page | Tab | ||||
| Quit | Esc | ||||
| Toggle Triplets Beat Subdivision | X | ||||
| Select / Deselect Single Event | Shift | Left Click | |||
| Selection Marquee | Shift | Left Click & Drag | |||
| Move Selected Event in Time | Shift | Alt | Arrow Keys | ||
| Delete Selected Events | Delete | ||||
| Event Colour Mirror | Mouse Hover | Middle Mouse Button | |||
| Modify Event | Mouse Hover | Alt | Any Event Brightness/Type | ||
| Modify Brightness /Rotation | Mouse Hover | Alt | Mouse Scroll Up /Down | ||
| Move Note on Grid | Alt | Left Click Hold & Drag | |||
| Delete Block (Alternative) | Mouse Hover | Ctrl | Middle Mouse Button | ||
| Cut | Ctrl | X | |||
| Copy | Ctrl | C | |||
| Paste | Ctrl | V | |||
| Clear Selection | Ctrl | A | |||
| Quick Save | Ctrl | S |
Rotation
| Function | Mouse Hover | CTRL | SHIFT | ALT | Key |
|---|---|---|---|---|---|
| 0° Rotation Event | W | ||||
| 45° Rotation Event | E | ||||
| 90° Rotation Event | D | ||||
| 135° Rotation Event | C | ||||
| 180° Rotation Event | X (Currently clashes with Triplet Toggle) | ||||
| 225° Rotation Event | Z | ||||
| 270° Rotation Event | A | ||||
| 315° Rotation Event | Q | ||||
| Counter Clockwise Rotation | 1 | ||||
| Auto Rotation | 2 | ||||
| Clockwise Rotation | 3 | ||||
| Extension Block | 4 | ||||
| Delete | 5 > Left Click on Event | ||||
| Loop 0 | R | ||||
| Loop 1-5 | T (Keep clicking to Toggle through Loop Count) | ||||
| Easing - InOutQuad | F | ||||
| Easing - None | G | ||||
| Easing - In / Out Quad Toggle | V (Click again to Toggle) | ||||
| Easing - Linear | B | ||||
| Toggle Triplets Beat Subdivision | X (Currently Clashes with 180°) |
Static Event Mode (F3) Controls
Colour Lanes
| Function | Mouse Hover | CTRL | SHIFT | ALT | Key |
|---|---|---|---|---|---|
| 1st Colour Event | 1 | ||||
| 2nd Colour Event | 2 | ||||
| White Colour Event | 3 | ||||
| Extension Block | 4 | ||||
| Delete | 5 > Left Click on Event | ||||
| Static Event Brightness 0 | Q | ||||
| Static Event Brightness 50 | W | ||||
| Static Event Brightness 100 | E | ||||
| Fade Event Brightness 0 | A | ||||
| Fade Event Brightness 50 | S | ||||
| Fade Event Brightness 100 | D | ||||
| Set Brightness 0- 90 | Numpad 0-9 | ||||
| Set Brightness 100 | Numpad / | ||||
| Set Brightness 120 | Numpad * | ||||
| Set Brightness 150 | Numpad - |
Common Functions
| Function | Mouse Hover | CTRL | SHIFT | ALT | Key |
|---|---|---|---|---|---|
| Change Event Page | Tab | ||||
| Quit | Esc | ||||
| Toggle Triplets Beat Subdivision | X | ||||
| Select / Deselect Single Event | Shift | Left Click | |||
| Selection Marquee | Shift | Left Click & Drag | |||
| Move Selected Event in Time | Shift | Alt | Arrow Keys | ||
| Delete Selected Events | Delete | ||||
| Event Colour Mirror/Toggle | Mouse Hover | Middle Mouse Button | |||
| Modify Event | Mouse Hover | Alt | Any Event Brightness/Type | ||
| Modify Brightness | Mouse Hover | Alt | Mouse Scroll Up /Down | ||
| Move Note on Grid | Alt | Left Click Hold & Drag | |||
| Delete Block (Alternative) | Mouse Hover | Ctrl | Middle Mouse Button | ||
| Cut | Ctrl | X | |||
| Copy | Ctrl | C | |||
| Paste | Ctrl | V | |||
| Clear Selection | Ctrl | A | |||
| Quick Save | Ctrl | S |
Speed Lanes
| Function | Mouse Hover | CTRL | SHIFT | ALT | Key |
|---|---|---|---|---|---|
| Speed 0 | A | ||||
| Speed 1 | S | ||||
| Speed 2 | D | ||||
| Speed 3 | F | ||||
| Speed 4 | G | ||||
| Speed 5 | Q | ||||
| Speed 6 | W | ||||
| Speed 7 | E | ||||
| Speed 8 | R | ||||
| Speed 9 | T |
Boost Colour Lane
| Function | Mouse Hover | CTRL | SHIFT | ALT | Key |
|---|---|---|---|---|---|
| Boost ON | W | ||||
| Boost OFF | S |

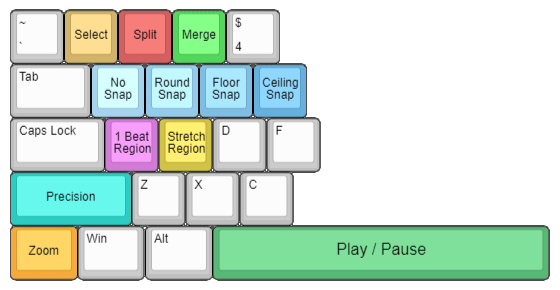

BPM Edit Tool Controls
| Function | Mouse Hover | CTRL | SHIFT | ALT | Key |
|---|---|---|---|---|---|
| Play / Pause | Spacebar | ||||
| Move Playhead in Time | Mouse Scroll Up / Down | ||||
| Zoom In / Out | Ctrl | Mouse Scroll Up / Down | |||
| Precision Move Playhead | Shift | Mouse Scroll Up / Down | |||
| Selection Tool | 1 | ||||
| Split Region Tool | 2 | ||||
| Merge Tool | 3 | ||||
| No Snapping | Q | ||||
| Snap Rounding (Closest to) | W | ||||
| Snap to Floor | E | ||||
| Snap to Ceiling | R | ||||
| 1 Beat Region Creation | A | ||||
| Stretch Regions | S |
